MICRO INSTRUMENTS FOR APPLICATION IN MICROSCOPIC SCIENCES Minitool is a manufacturer and distributor of a line of high quality precision tools and instruments for microscopic investigation and applications
SMALLEST PRECISION INSTRUMENTS FOR LABORATORY AND PRODUCTION

Diamond Scribing Tools


DIAMOND SCRIBING TOOLS WITH PRECISION PIN-VISE HANDLE

The PV-081 Series of diamond scribing tools are bent and straight tipped scribes (from .010" to .020" diameter) which fit into our precision pin vise handle ideal for positive precision control in handling and tool manipulation.  All diamond scribing tools have a .80mm (.030") diameter mounting shank.

Part # Picture Description
PV-081-2 Bent tip scribe Bent tip scribe, .010" (.25mm) diameter by .060" (1.5mm) tip length
PV-081-3 Straight extended tip scribe Straight extended tip scribe, .020" (.50mm) diameter by .200" (5.0mm) tip length. This tool is a must for reaching in between high density components.
PV-081-4 Bent extended tip scribe Bent extended tip scribe, .020" (.50mm) diameter by .200"(5.0mm) tip length. Use in tight places.
PV-081-5 Straight tip scribe Straight tip scribe, .020" (.50mm) diameter by .060" (1.5mm) tip length.
PV-081-6 Bent tip scribe Bent tip scribe, .020" (.50mm) diameter by .060" (1.5mm) tip length.
PV-081-7 Straight tip scribe Straight tip scribe, .010" (.25mm) diameter by .060" (1.5mm) tip length.
PV-081 See Below Precision Pin Vise Handle
PRECISION PIN-VISE HANDLE PV-081

PRECISION PIN-VISE HANDLE PV-081

HIGH PRECISION DIAMOND SCRIBING TOOLS WITH MT-1 HANDLE
All of the diamond scribing tools and handle listed below are available separately or in sets.  The Diamond Scribing Tool Set Cat. # MT-15-000 consists of a fitted hardwood instrument case, 1 MT-1 handle and 8 tool cones with mounted diamond tips as described above.
These professional scribing tools are used for scribing of delicate components or any other scribing tasks calling for the absolute finest scribing tools available
Part # Picture Description
MT 15-020-S Straight Tip Scribe Straight Tip Scribe, .020" (.50mm) diameter by .060" (1.5mm) tip length.
MT 15-020-B Bent Tip Scribe Bent Tip Scribe, .020" (.50mm) diameter by .060" (1.5mm) tip length.
MT 15-010-S Straight Tip Scribe Straight Tip Scribe, .010" (.25mm) diameter by .060" (1.5mm) tip length.
MT 15-010-B Bent Tip Scribe Bent Tip Scribe, .010" (.25mm) diameter by .060" (1.5mm) tip length.
MT 15-020-SE Straight Extended Tip Scribe Straight Extended Tip Scribe, .020" (.50mm) diameter by .200" (5.0mm) tip length. This tool is a must for reaching into and between high density components.
MT 15-020-BE Bent Extended Tip Scribe Bent Extended Tip Scribe, .020" (.50mm) diameter by .200" (5.0mm) tip length. Use for tight places.
MT 15-030-HDS Straight Heavy Duty Tip Scribe Straight Heavy Duty Tip Scribe, .030" (.80mm) diameter by .120"(3.1mm) tip length.
MT 15-030-HDB Bent Heavy Duty Tip Scribe Bent Heavy Duty Tip Scribe, .030" (.80mm) diameter by .120"(3.1mm) tip length.

MT-1 HANDLE

MT-1 HANDLE

PRECISION PIN VISE HANDLE PV-081 & .50mm & .25mm DIAMOND STYLUS

This high precision pin vise handle is machined from the finest material.  It is light weight and versatile, with a precision drawbar for positive collet chuck clamping.  The 8mm (.31") hexagonal barrel dimension by 100mm (4") long, (overall length is 115mm fully assembled) has a knurled finger grip for positive precision control in handling and tool manipulation.  Supplied with a standard collet chuck (bore diameter 2mm (.078") which fits knife blades and special tools - and collet adapter (bore diameter .8mm (.030") for diamond stylus chucking.
PRECISION PIN VISE HANDLE PV-081 and .50mm and .25mm DIAMOND STYLUS
PV-081
pin vise incl. collet adapter
PV-078-U diamond stylus .50mm
PV-078-U2 diamond stylus .25mm

HIGH PRECISION DIAMOND SCRIBE S-078

HIGH PRECISION DIAMOND SCRIBE S-078

The S-078 diamond scribe is the ultimate scribing instrument for delicate work.

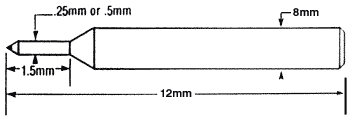

The diamond mounting is .8mm diameter with a reduced shank size of .5mm or .25mm diameter which holds the diamond stylus.  The natural diamond has a 60 degree included angle and a .012mm tip radius.  It is available in a straight or bent configuration.

DIAMOND SCRIBER
DIAMOND SCRIBER

The SS-77 diamond scriber is used for scribing and marking of hard and super hard surfaces such as silicon, fired alumina and other ceramics.

DELUXE DIAMOND SCRIBING PEN

DELUXE DIAMOND SCRIBING PEN

The G-250-01 is a high quality precision scribing tool in a durable pen housing.  Twist of barrel exposes or retracts the ground and lapped diamond tip.  Refills available.

DIAMOND MARKING PEN

DIAMOND MARKING PEN The D-97-2 if a general purpose diamond scribing tool.  The natural diamond is ground and lapped.  Works like a ball point pen with protective cap.
DIAMOND SCRIBING TOOL SET

DIAMOND SCRIBING TOOL SET


Two high precision diamond scribing tools (MT 15-020-S, and MT 15-020-B) placed in a threaded tool cone.  Comes with one interchangeable handle.

PIN-VISE DIAMOND SCRIBE SET

PIN-VISE DIAMOND SCRIBE SET


Ten diamond scribes (five straight tip scribes PV-081-5, and five bent tip scribes--PV-081-6).  Comes with a pin vise handle.

Deluxe Diamond Scribing Pen with Refill Set

Deluxe Diamond Scribing Pen with Refill Set


High quality precision scribing tool in a retractable pen.  Comes with one additional refill.
